Level Sensors

1

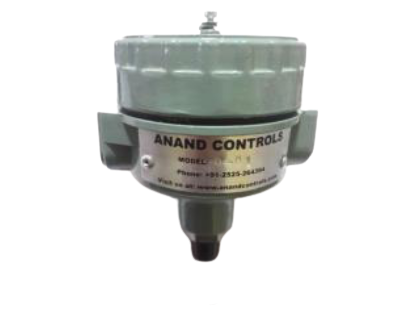

VAA-HPL Series Level Transmitter:-

This latest series features high accuracy and a quick turnaround for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The wetted material is made of 316L stainless steel and the transducer's durability is excellent with o-rings, welds or organics exposed to the pressure media. The Transmitter is weatherproof and exceeds the latest heavy industry CE requirements for surge protection. The circuit is protected from reverse wiring at input and short circuit at output.

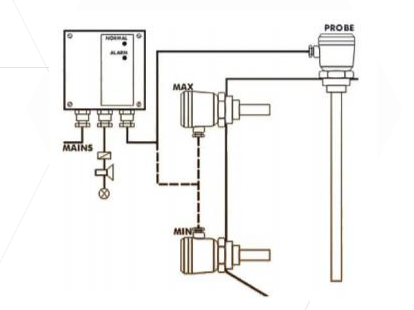

Mounting Arrangement

The mounting arrangement for SLC is explained in Figure 1.

Features :-


♦ Power Supply: 24 V DC, 110 V AC, 220 V AC, 230 V AC

♦ Ignores build-up of material on vessel wall

♦ High temperature durability

♦ No moving parts, no mechanical wear-and-tear

♦ System fault indication for added reliability

♦ Available with PESO certification

2

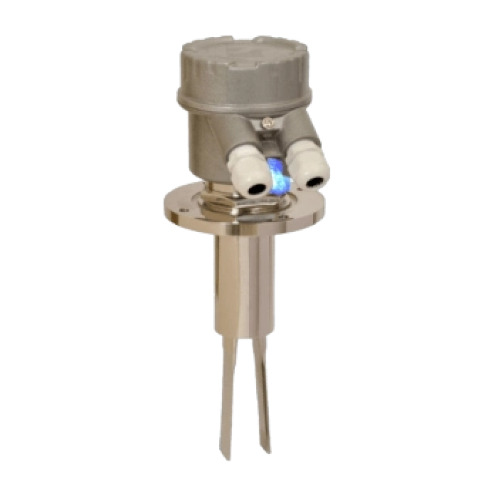

Microcontroller based Vibrating Fork Liquid Level Limit Switch:-

Elixir vibrating fork is a level switch for liquids and is used in tanks,containers and pipelines.As a sturdy replacement of conventional float switch,Elixir offers a variety of built-in features non-existant in floats and other switches e. g. where materials are sticky, corrosive, agitated, splashing, foaming and having uncertain electrical properties.Elixir vibrating fork is suitable for hazardous areas, available with explosion-proof housings certified by CMRI, Dhanbad.

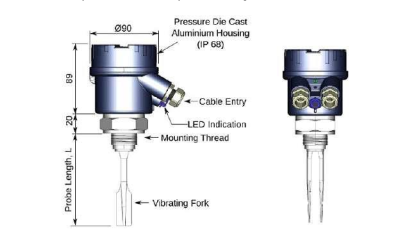

Parts

The parts of Elixir is explained in Figure

Features :-


♦ Less Power Consumption: Less Heat, Long Life

♦ Universal Power Supply: 18 to 55 V DC, 90 to 265 V AC on same terminals

♦ Application Temperature Range: up to 200° C

♦ Suitable up to 10, 000 cP (Detects all Industrial Fluids)

♦ Compact Size: Less Inventory

♦ Extendable probe length from 68 to 3000 mm

♦ ECTFE-coated, polished & hygienic fork

♦ Output: 8. 2V Namur, SPDT & DPDT Relay type current output

♦ Calibration Free, independent of the material's dielectric properties
